dd3040

RGBW 24-Key M8 RF Controller Diode Dynamics

Regular price $67.00 CAD Sale price$53.60 CAD
/

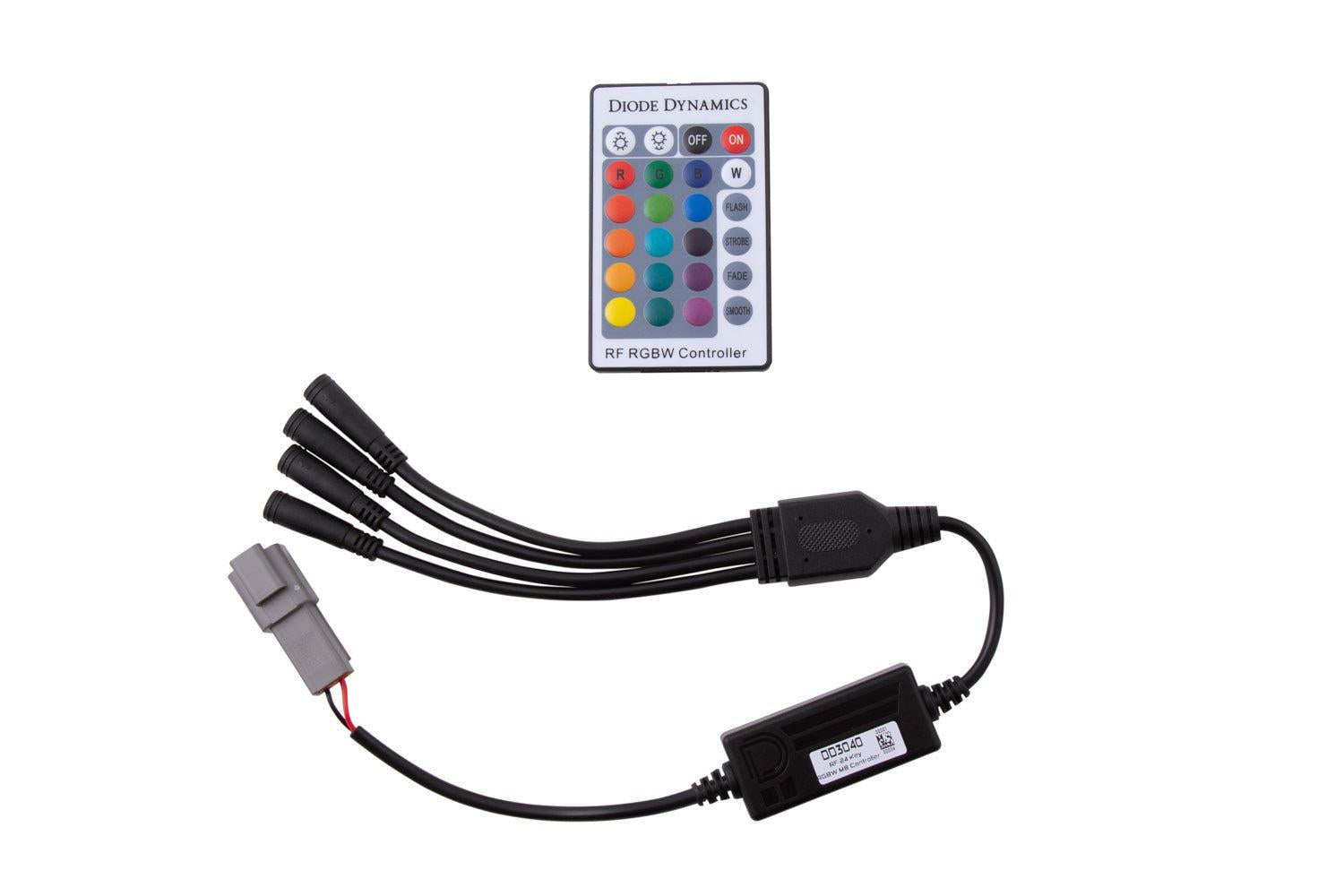

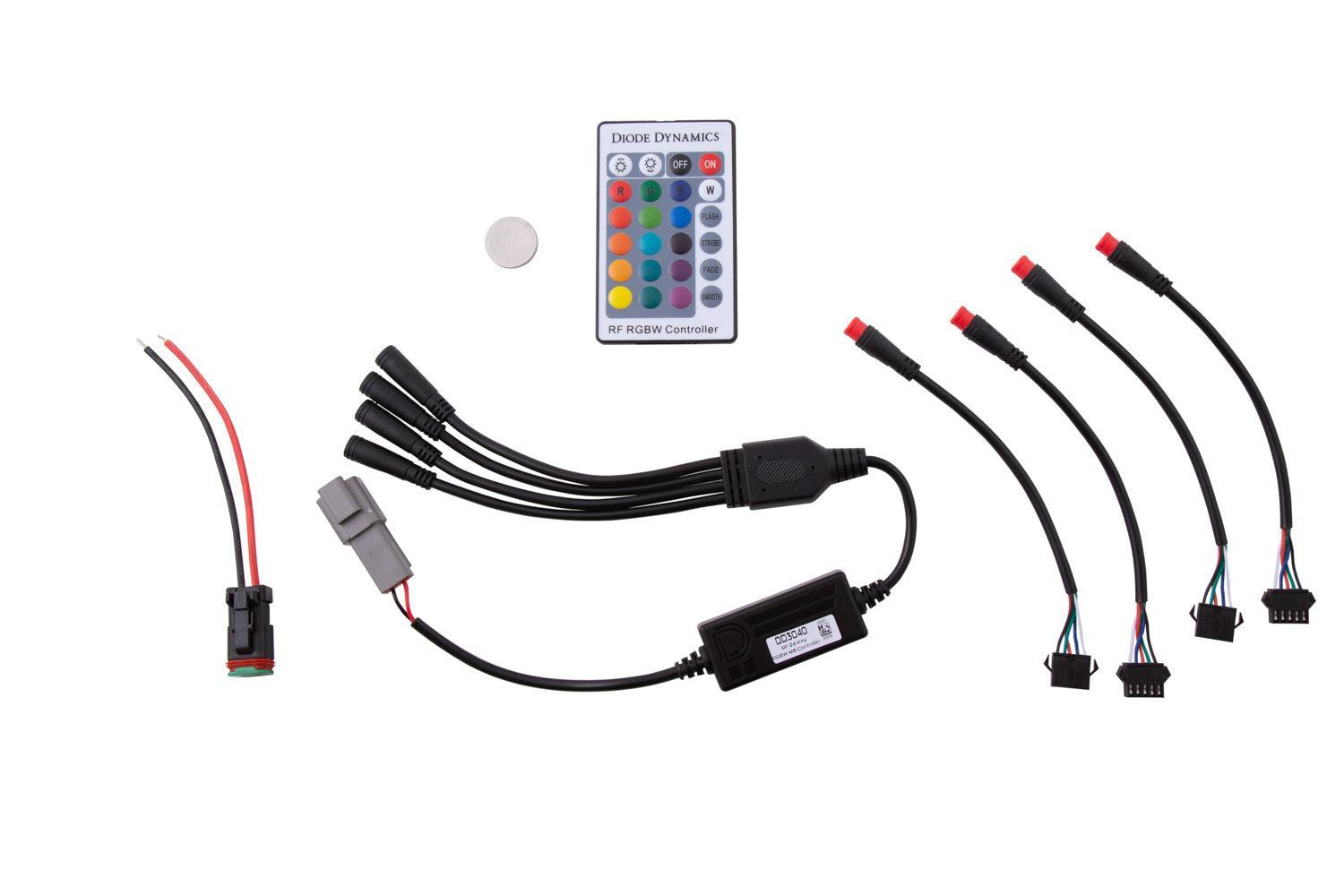

  • WHAT'S INCLUDED IN THE BOX:

One (1) RGBW 24-Key Controller

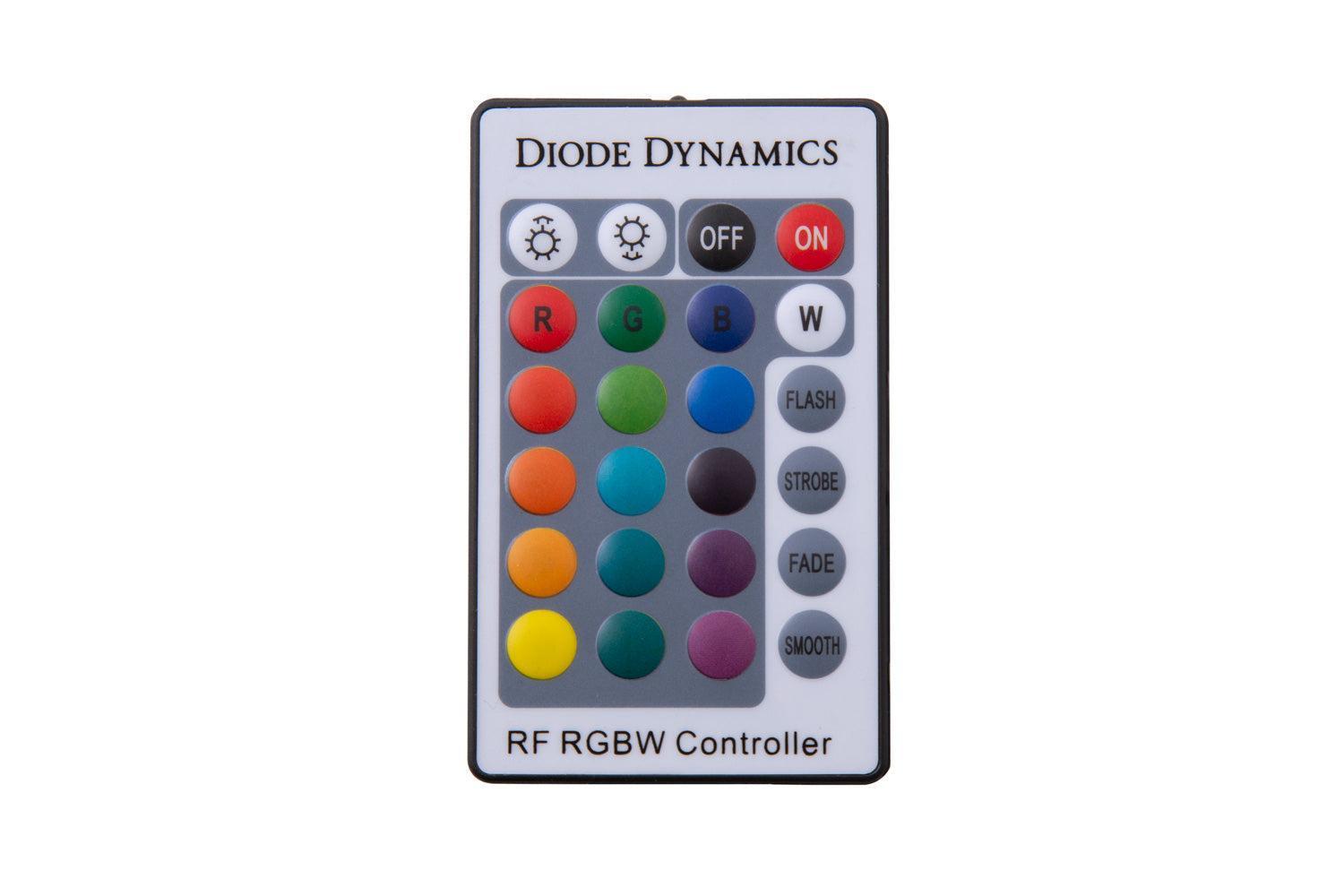

One (1) RGBW 24-Key Remote
One (1) CR 2025 3V Battery
Four (4) JST-to-M8 Adapter Wires

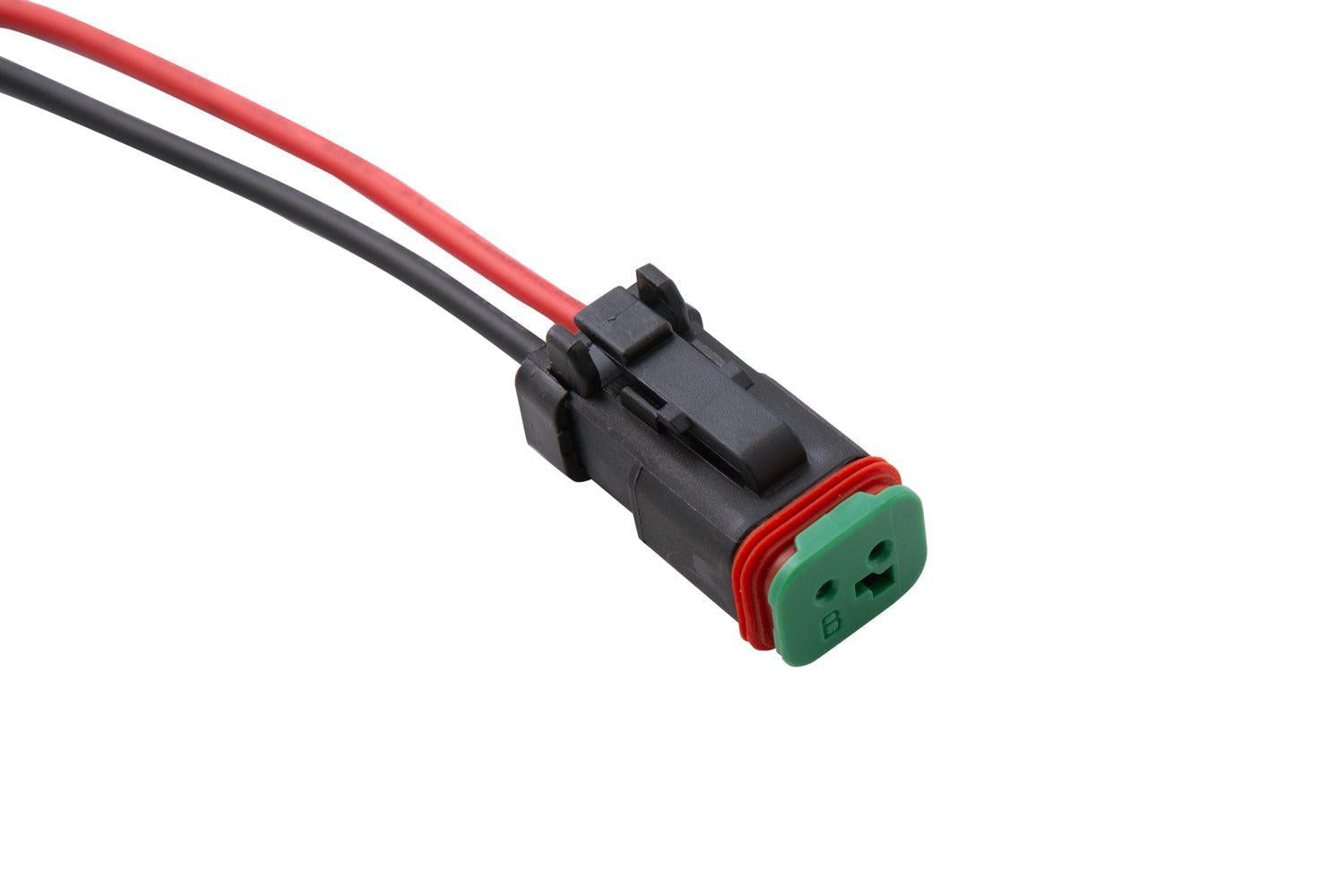

One (1) Deutsch DT Pigtail

Installation/troubleshooting card

Quantity: One (1)
Warranty: 3 year warranty


  • Free shipping within Canada on orders over 350$
  • Special Order Item, Usually Ships Within 3-7 Business Days

Features

  • Control RGBW products with radio-frequency remote control.
  • 16 static color options, including True White.
  • Four preset color-changing modes.
  • Four M8-style outputs, with JST adapters included.
  • Output up to 8 amps (2A per connection).
  • Fully waterproof and shockproof.
  •

    Overview

    Full RGBW. If you are looking for a reliable, low-cost RGBW controller, look no further! Unlike other RGB controllers that produce a mixed white color, this controller is full RGBW, with 16 static color options and an independent White channel. This controller also allows you to adjust the brightness of your LEDs, and features four preset color-changing modes. After you have fun with colors, just select True White for a crisp, clean white output for everyday use.

    Easy Connection. With plug-and-play input and output connectors, simply plug into any standard 12V signal - we recommend parking lights or direct battery. Then, connect the outputs directly to your Diode Dynamics multicolor products, with no cutting, crimping, or splicing. This controller features a fully waterproof, compact enclosure, along with M8 output connectors for secure connections.

Specifications

Battery: One CR 2025 3V
Power (watts): 96
Operating Voltage: 9-16V
Operating Temperature: -40C to 85C (-40F to 185F)

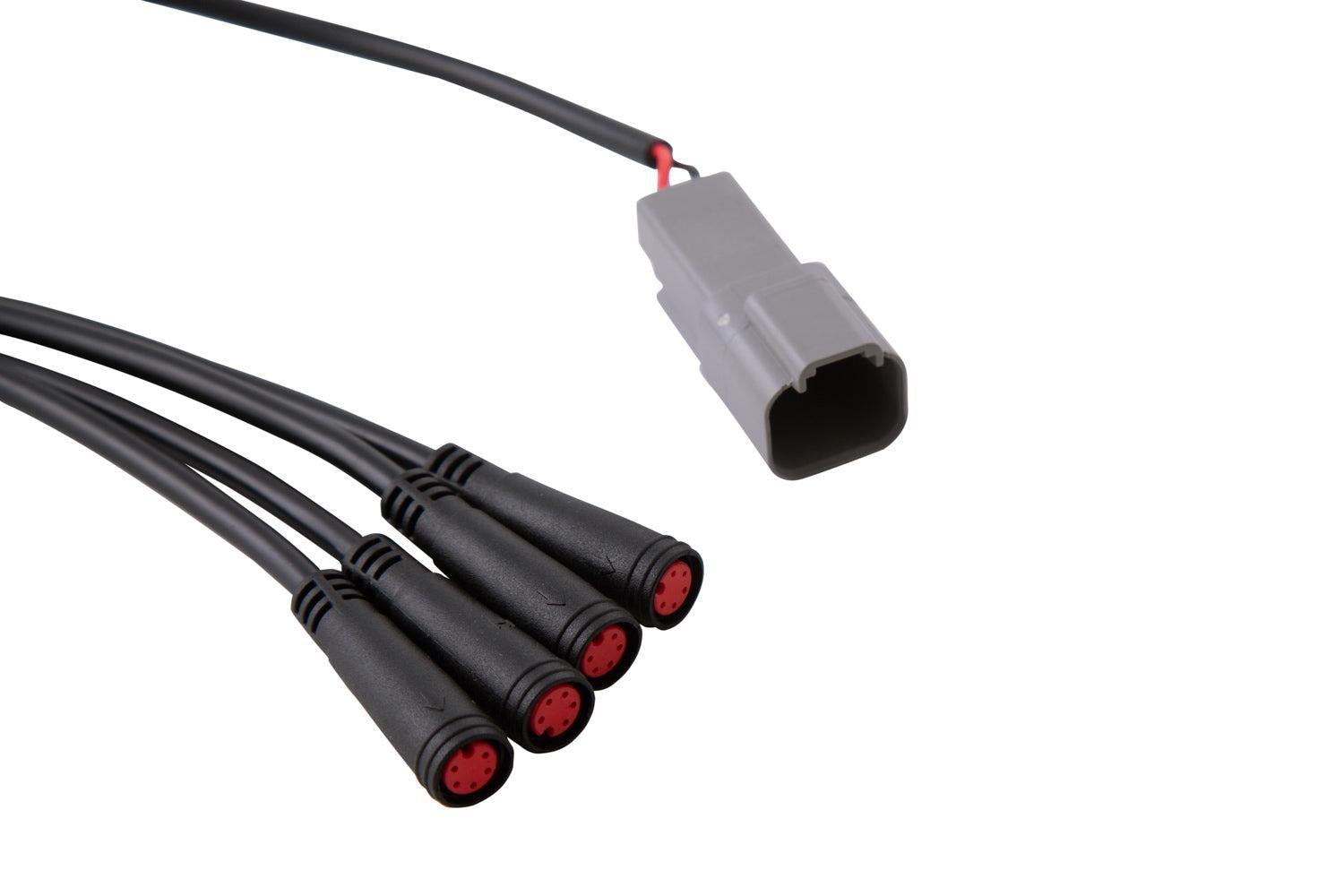

Connector(s): Deutsch DT Input, M8 Output
Intrusion Ratings: IP67 Weatherproof
Shipped Weight (lb): 0.5

With plug-and-play input and output connectors, simply plug into any standard 12V signal - we recommend parking lights or direct battery. Then, connect the outputs directly to your Diode Dynamics multicolor products, with no cutting, crimping, or splicing.
