Diode Dynamics

dd4092

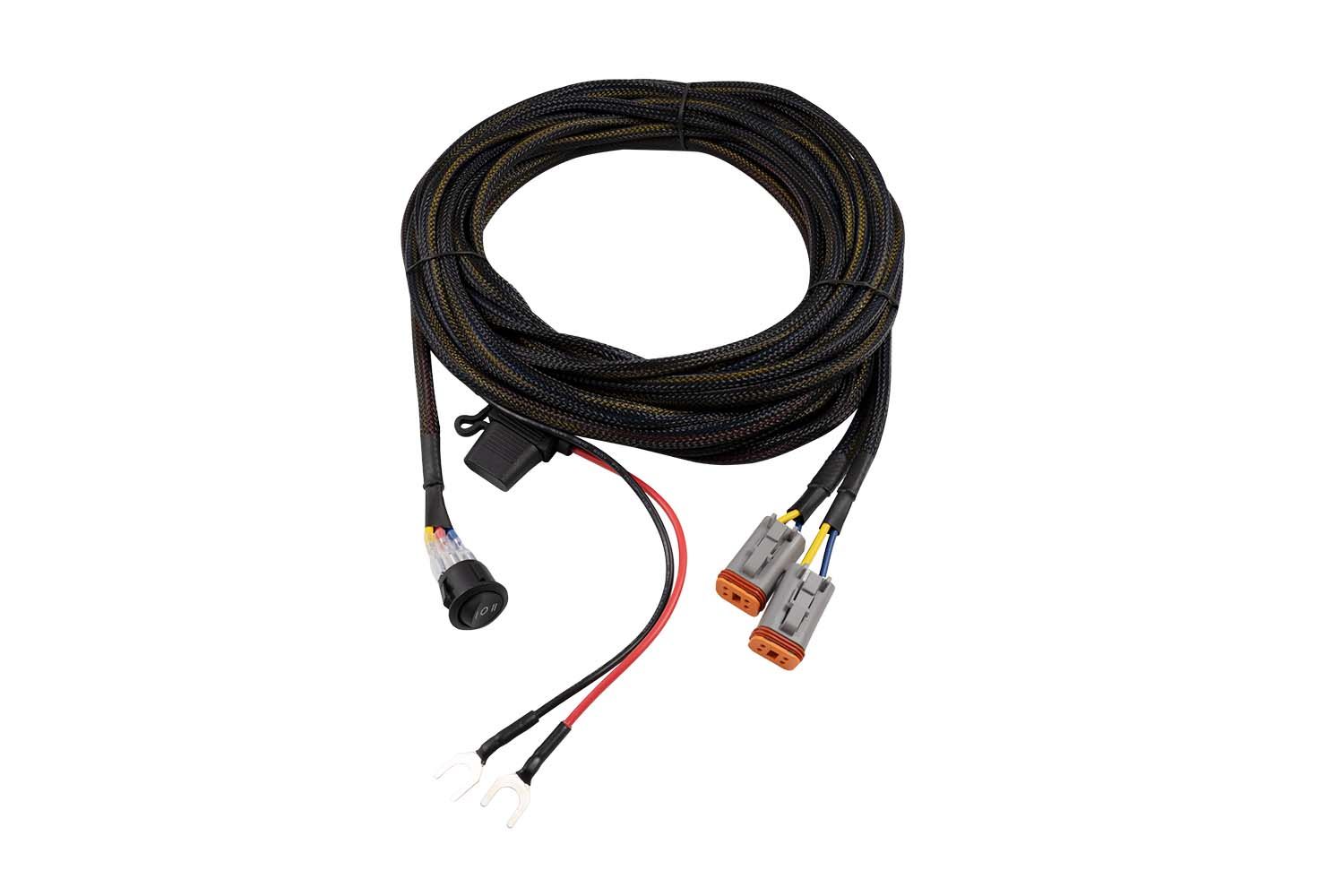

Light Duty Dual Output 3-way 4-pin Wiring Harness (With Backlight)

$55.00 CAD $44.00 CAD
/
  • WHAT'S INCLUDED IN THE BOX:

One (1) wiring harness
One (1) toggle switch
Quantity: One (1)
Warranty: 3 year warranty

  • Free shipping within Canada on orders over 350$

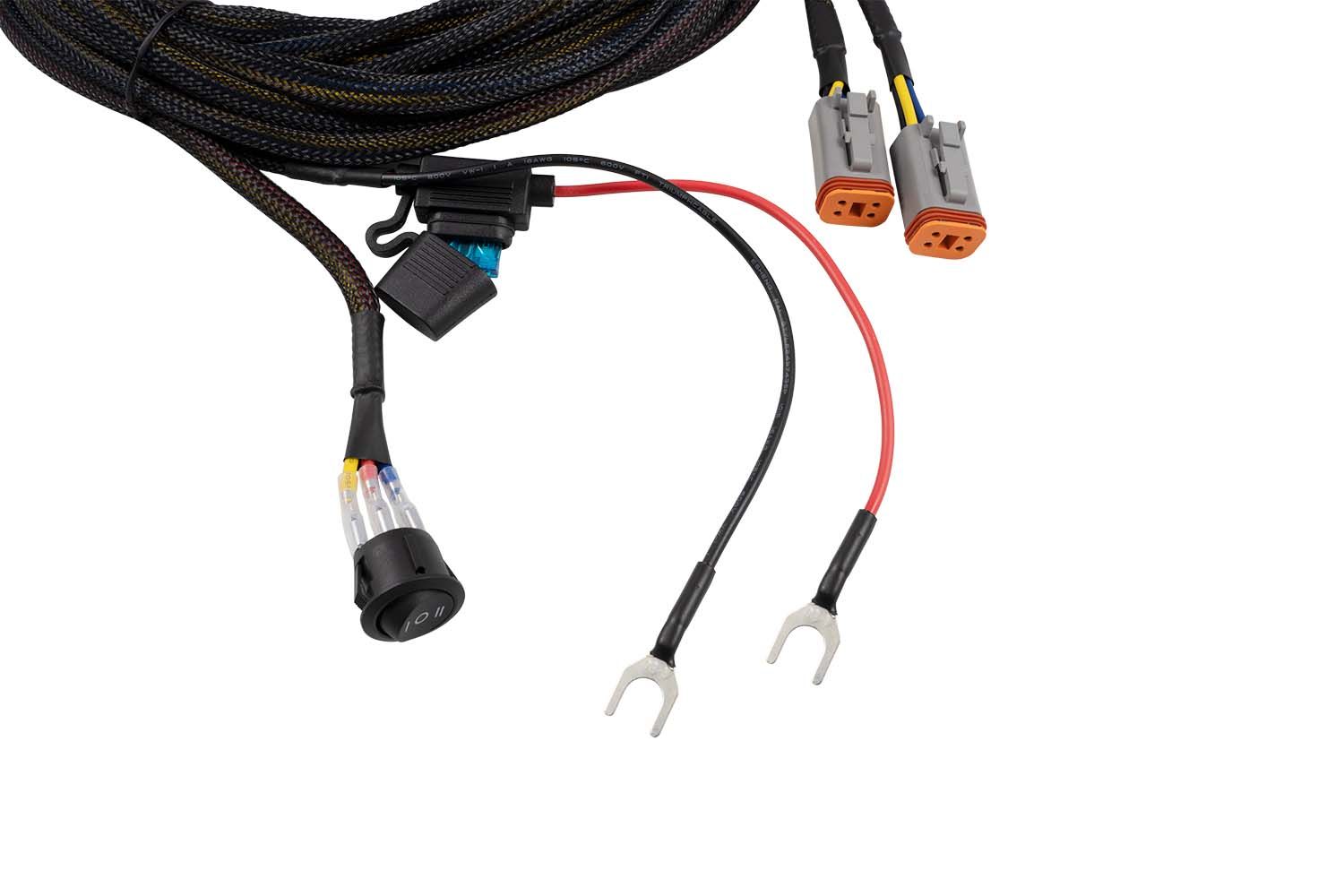

Features

  • Powers Diode Dynamics LED pods with backlight functionality.
  • Connects directly to the battery to power your LED pods.
  • High capacity 16AWG wiring.

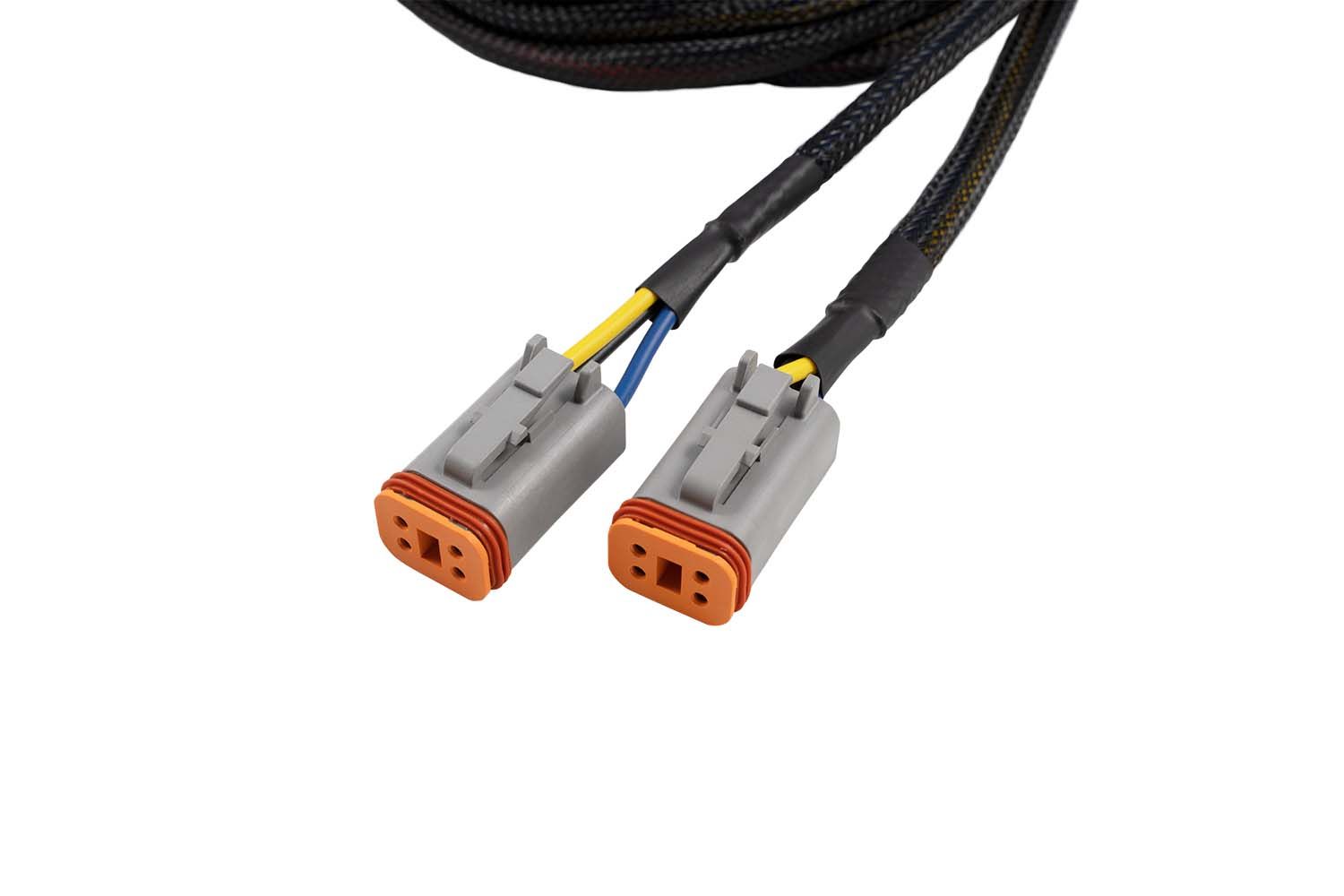

  • Dual Deutsch DT output connectors.
  • 15A waterproof fuse to safeguard the electrical systems in your pods.

    •

    Overview

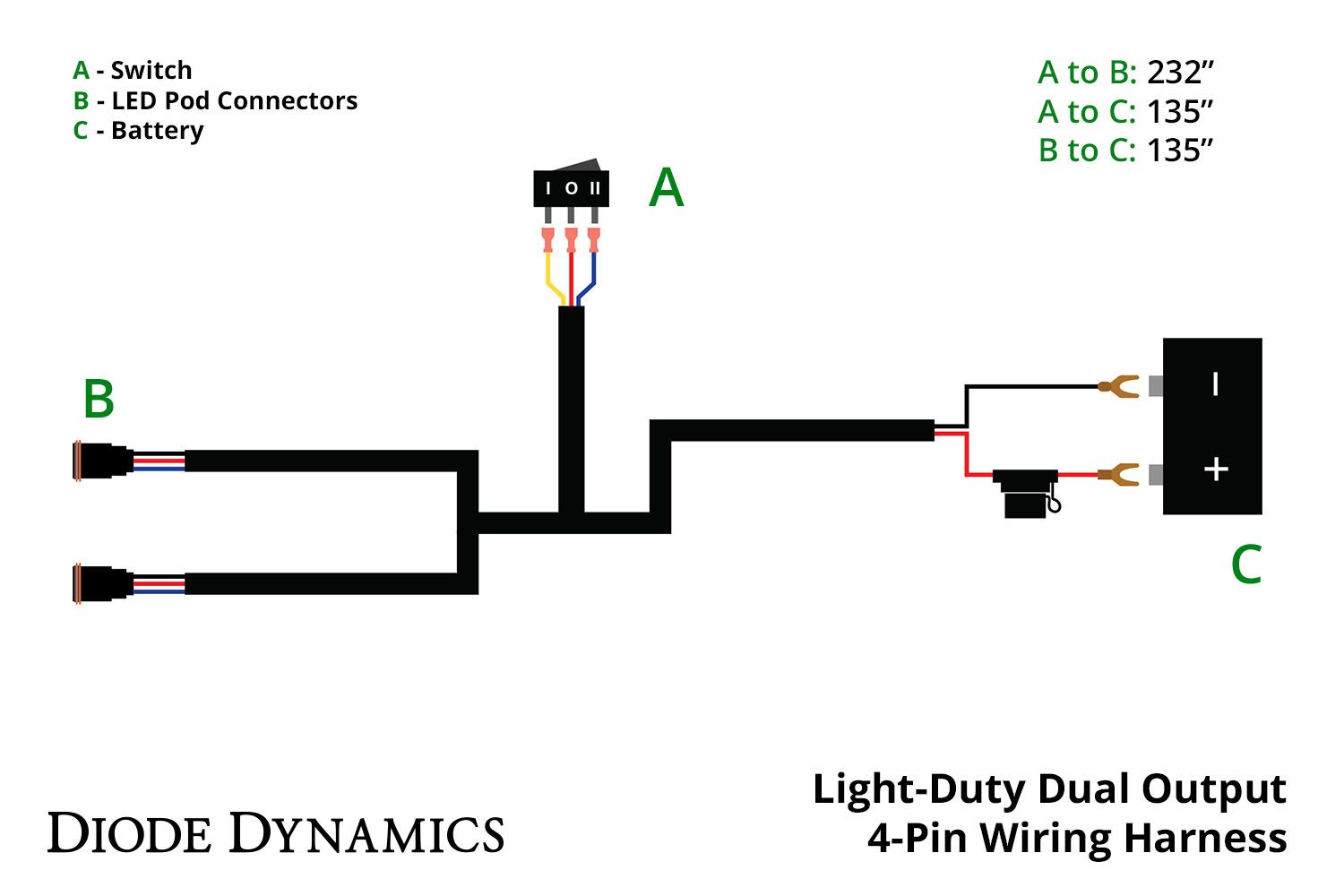

    Stage Series. This harness is intended to be used with our Stage Series pods with backlight functionality. This harness connects directly to your vehicle's battery and allows you to power your offroad lighting. It features a three-way switch to toggle between the backlight, off, and the main beam. This harness uses high capacity 16AWG wiring and Deutsch DT connectors for simple plug-and-play installation.

    This harness safely powers up to 6A of auxiliary lamps. Please refer to the current draw data below.

    • C1 Sport: 1.2A
    • C1 Pro: 1.7A
    • SSC2 Sport: 0.6A
    • SSC2 Pro: 1.75A
    • SS3 Sport Main Beam: 1.1A, Backlight: 0.03A
    • SS3 Pro Main Beam: 2.7A, Backlight: 0.03A

Operating Voltage: 9-16V
Wire Size: 16AWG
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): Deutsch DT Input
Shipped Weight (lb): 3.31

Fitment

NOTE: This harness is intended to be used with our Stage Series pods with backlight functionality.
